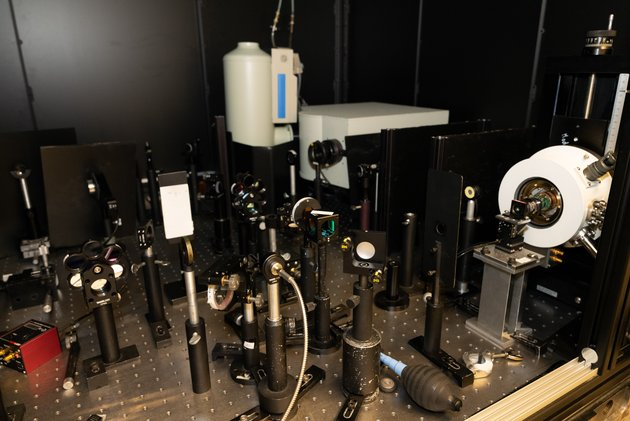

Cryogenic Optical Microspectroscopy Setup - Optical Table

Analysis types: Micro-photoluminescence, photoluminescence lifetime measurement, single-photon detection by time-correlation measurement, ODMR, photoconductivity, photoemission, various optical characterizations.

Sample size (mm):

Min: 0.5mm²

Max: 5mm x 5mm

Temperature:

Min: 1.3° K

Max: 370° K

Magnetic field (T):

Min: -3 T

Max: 2 T
Time required to cool the sample: 5 hours

Measurements: 25 DC lines and 4 26GHz SMA ports

Specific features:

Multiple laser excitation sources available from 266nm to 1055nm. Multiple detectors covering the visible and near-infrared range: cryogenic Ge and InSb detectors, Photomultiplier Tube, Avalanche Photodiodes.

What makes it unique?: Cryogenic confocal microscopy system with Attocube positioner. Latest generation EMCCD detector.
